Ultra Broadband/Low-Loss/No Distortion Optical Switches – Fiber-Fiber™
- Ultra-Low Loss, as low as 0.1dB
- Broadband 300 to 3000 nm
- High Isolation up to 80dB
- All Fiber Types: SM, MM, PM, Special
- All Fiber Core Size from 0.3mm to 1mm
- No Gaps, No Coating, No Lens
- Lowest Loss for Short Wavelength
- No Mode Distortion for Multimode Transmission
- Vibration Insensitive, Moisture Resistance
- 1×1, 1×2, 2×2, 1×4, 1×8, 1×16, 1×32, 1×300
The Fiber-Fiber™ Series of optical switch is based on a patented MEMS technology that self-aligns a fiber directly to another fiber with a tiny gap filled with an index-matching liquid. The breakthrough technology enables light to propagate continuously without interruptions and distortions, eliminating the need for lenses, AR coating, and reflections from internal surfaces. It offers unparalleled advantages of a nearly lossless of about 0.2dB for all ports (below 0.01dB with special order), broad wavelength operation from 200nm~4000nm, little back-reflection, no distortion to the mode properties for multimode transmission, lowest coupling loss for small core fibers, amicable to any fiber types, vibration insensitive, moisture resistance, and high optical power handling. It is also the lowest-cost solution in the industry. We offer two platforms: MEMS for fiber counts up to 8 and motor-driven for large fiber port counts up to 300. The Fiber-Fiber™ optical switches can meet demanding application requirements, having a broad customer base ranging from optical measurements/testing systems, spectroscopy (including Raman and fluorescence), industrial production and process control, space satellites, and biomedical.
-
Single or Dual 1xN Fiber Optic Switch System – Fiber-Fiber™
Ultra-broadband 400-2400nm, N up to 340, all fiber types, latching, low loss<0.3dB
Ethernet, RS232, TTL, USB$2890+
SKU: LBSCD
$2,890 -
Fiber Optic Switch System – Custom Configurations – Fiber-Fiber™
(all fiber type, all wavelength, little distortion, bidirectional, latching)
SKU: FFSY
-
1×1, 1×2, 2×2 Fiber Optical MEMS Switch Kit, USB/Push Button – Fiber-Fiber™
350nm-2400nm, Ultra-Low Loss, Vibration Insensitive, SM, PM, MM, Bidirectional
$605+
SKU: FFSM
$605 – $2,430 -

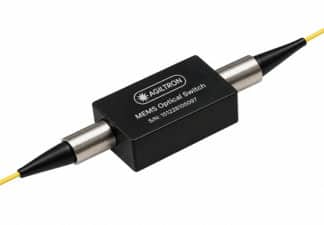

1×1, 1×2, 2×2 Broad Wavelength MEMS Optical Switch – Fiber-Fiber™
350nm-2400nm, Ultra-Low Loss, Vibration Insensitive, SM, PM, MM, Bidirectional
$222+
SKU: FFSW
$222 – $1,084 -
1×1, 1×2, 2×2 Fast Broad Wavelength Optical Switch – Fiber-Fiber™
0.4ms Rise/Fall, 50Hz Repetition, 350nm-5500nm, Ultra-Low Loss, Vibration Insensitive, SM, PM, MM, Bidirectional
$690+
SKU: FFSW
$690 – $750 -
Dual 1×2 Broad Wavelength Optical Switch – Fiber-Fiber™
350nm-2400nm, Ultra-Low Loss, Vibration Insensitive, SM, PM, MM, Bidirectional
$398+
SKU: FFSW
$398 -
Full 2×2 & 2×2 Bypass Broad Wavelength Optical Switch – Fiber-Fiber™
350nm-2400nm, Ultra-Low Loss, Vibration Insensitive, SM, PM, MM, Bidirectional
$358+
SKU: FFSW
$358 – $930 -
Optical Switch Quad (4) 2×2 Bypass – Fiber-Fiber™
(SM, MM, Broadband, Bidirectional)
SKU: FFSW
-
Hermetic Optical Switch 1×1, Dual 1×1, 1×2, 2×2 – Fiber-Fiber™
350nm-2500nm, Vibration Insensitive, SM, PM, MM, Broadband, Bidirectional
SKU: FFSH
-
Fast Large Fiber Core 1×2 Broad Wavelength Switch – Fiber-Fiber™
350nm-2400nm, 5ms, up to 1mm diameter, Bidirectional
$560+
SKU: FFLS
$560 – $1,114 -
High Power Large Core Fiber Shutter/Switch – Fiber-Fiber™
up to 15W, up to 1 mm diameter, ultra-broadband, 1x1, bidirectional
$960+
SKU: LFSH
$960 -
1×4 Broad Wavelength MEMS Optical Switch – Fiber-Fiber™
350nm-2400nm, Ultra-Low Loss, Vibration Insensitive, SM, PM, MM, Bidirectional
$985+
SKU: FFSW
$985 – $1,735 -
1×8 Broad Wavelength MEMS Optical Switch – Fiber-Fiber™
500nm-2400nm, Ultra-Low Loss, Vibration Insensitive, SM, PM, MM, Bidirectional
$1950+
SKU: FFSW
$1,950 – $3,780 -
1xN Broad Wavelength Mini Optical Switch – Fiber-Fiber™
350nm-2400nm, Bidirectional, High-Power
$2304+
SKU: FFMU, FFMR, FFMG, FFMT
$2,304 – $4,560 -
1xN Broad Wavelength Fiber Optical Switch – Fiber-Fiber™
All Fiber Types, 350nm-2400nm, up to 300 ports, Bidirectional, High-Power
$1324+
SKU: LBSA
$1,324 – $38,238 -
Dual 1xN Broad Wavelength Optical Switch – Fiber-Fiber™
All Fiber Types, 350nm-2400nm, up to 300 ports, Bidirectional, High-Power
$3700+
SKU: LBSA
$3,700 – $22,900 -
No Gap, Ultra-Low Loss 1xN/2xN Fiber Optic Switch – Fiber-Fiber™
Lower Insertion Loss, Continuous Transmission Without Mode Distortion, Ultra Broadband, All Fiber Types
SKU: LBSA
-
MxN Fiber Optic Switch System – Fiber-Fiber™
Ultra-broadband 400-2400nm, M/N up to 340, all fiber types, latching, low loss<0.3dB
Ethernet, RS232, TTL, USB$12950+
SKU: SANM
$12,950
Drivers
-
Switch Driver for 1×2/2×2
Push Button/TTL/USB Windows GUI For MEMS, LB, Fiber-Fiber 1x2/2x2 Switches
$398+
SKU: SWDR
$398 -
Complex Switch Driver for Optical Switches/Combinations (not including NS type)
Control Up to 20 switches of CL, LB, MEMS, Fiber-Fiber types, USB, RS232, GUI, Ethernet
SKU: SWDR
-
Custom Switch Board and Software
(We make custom electronic circuits for all application scenarios)
SKU: SWDR
